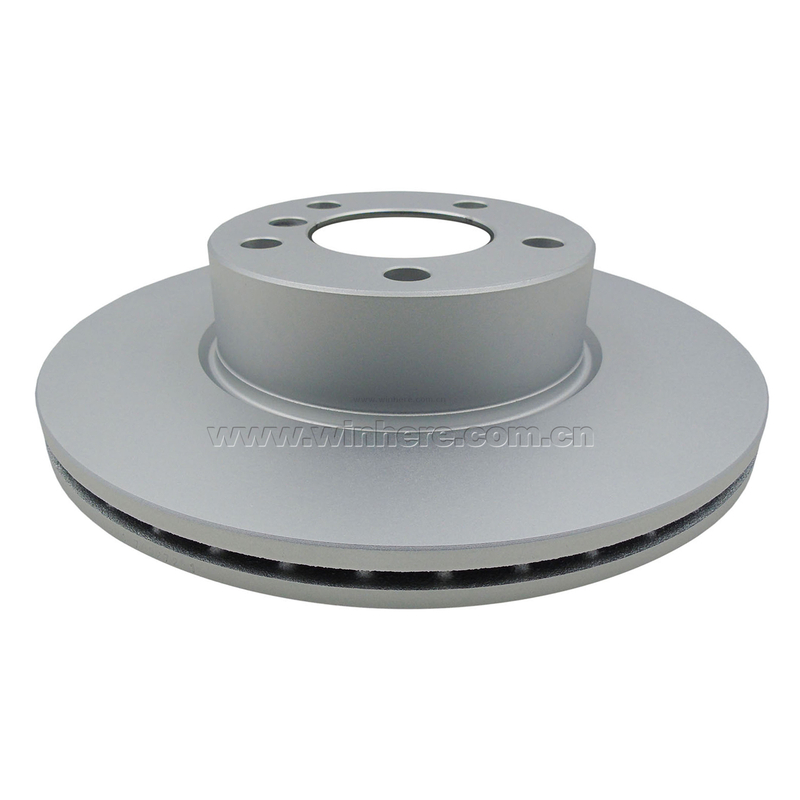

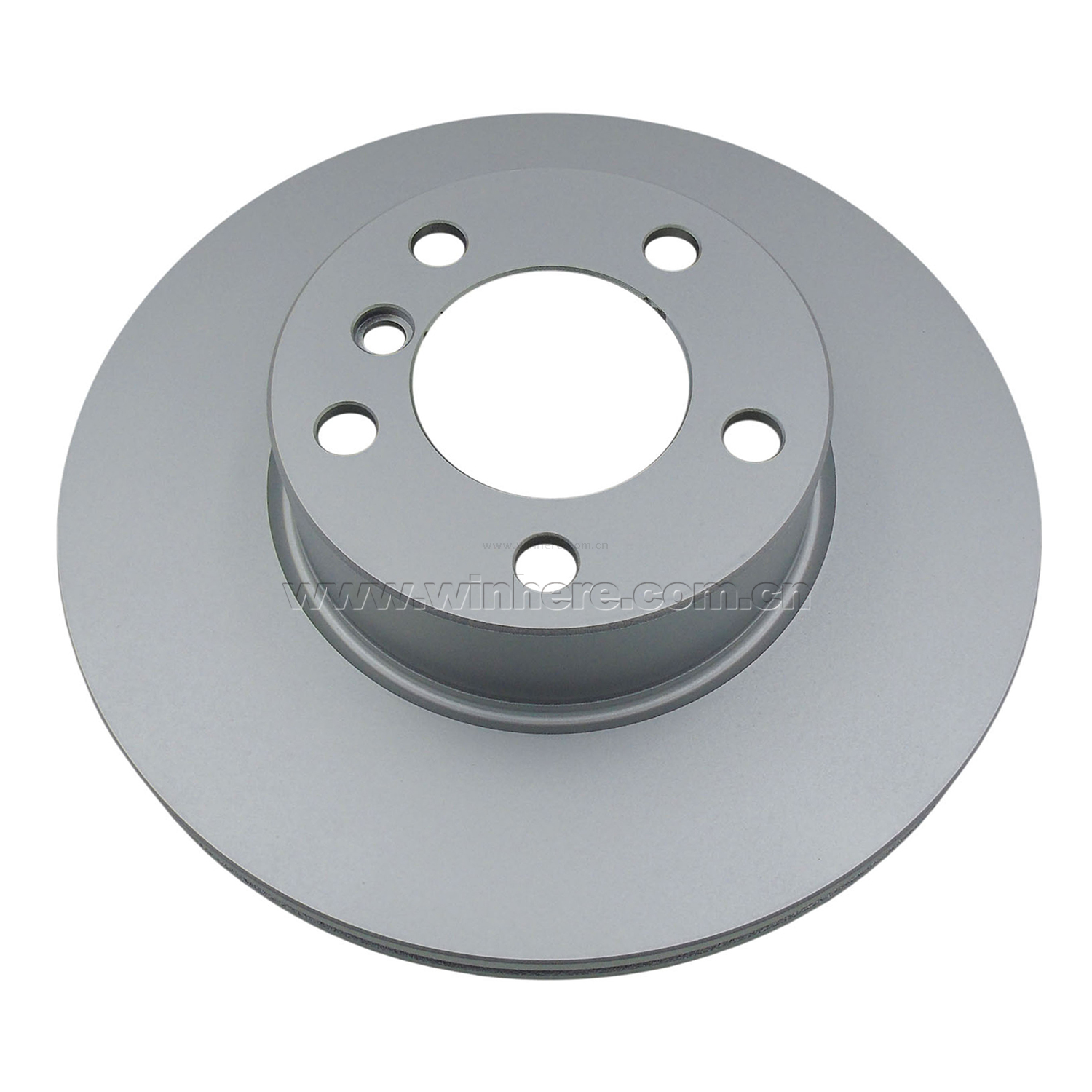

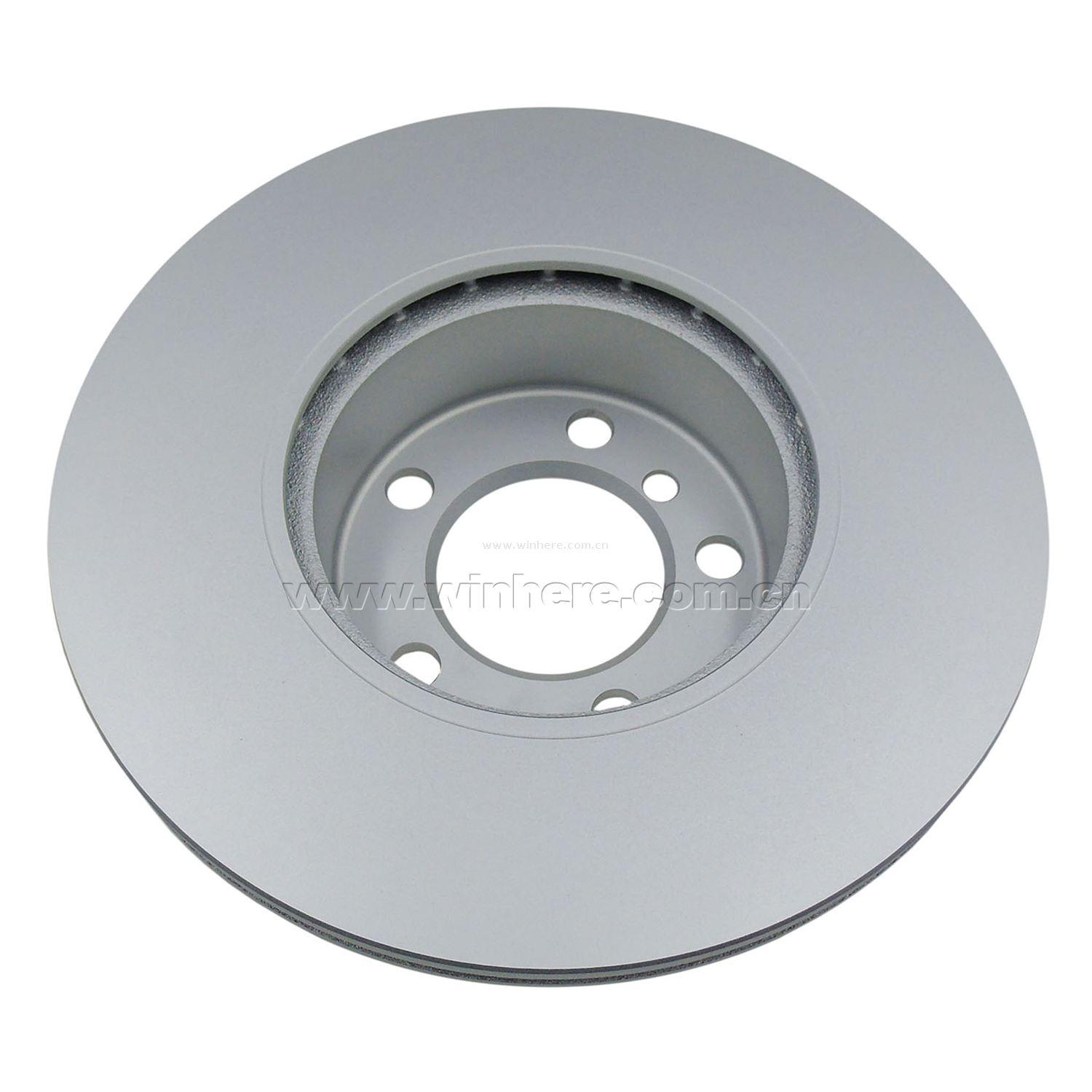

Directional Front Brake Disc for BMW ECE R90

Brake Discs Features:

•Equivalent to OE design

•Smooth and quick stop

•Anti-rust

•Low noise, low dust

•Optimal thermal performance

•Enhanced Heat Dissipation Design: Some composite disc designs focus on cooling performance. One patent describes a design with internal air channels and radial stiffeners, which the applicant claims can reduce weight while improving heat dissipation.

•High-Performance Material Composition: Advanced composites, such as carbon fiber reinforced silicon carbide, are used in high-end applications. Another study highlights an aluminum matrix composite  that provides excellent wear resistance and stable friction performance, even in demanding environments like urban rail transit.

Overview

This product is a directionally vented front brake disc engineered specifically for BMW vehicles. The directional design – featuring curved internal cooling vanes that rotate in a specific orientation – represents a step beyond conventional straight‑vane discs. Combined with ECE R90 certification, precision machining to micrometer tolerances, and the availability of an integrated bearing kit, this disc offers BMW owners a comprehensive, high‑performance braking solution that matches the expectations of a premium driving experience.

What Makes a Directional Brake Disc Different?

• Directional brake discs are engineered with curved internal cooling vanes that are oriented to optimise airflow in the direction of wheel rotation.

• When the vehicle moves forward, the curved vanes act like a centrifugal fan, actively drawing air from the centre of the disc and expelling it outward through the friction faces.

• This design significantly improves heat dissipation compared to non‑directional or straight‑vane discs.

• The directional cooling effect is most pronounced at higher speeds, making it particularly valuable for BMW vehicles that are often driven at sustained highway speeds.

• Unlike non‑directional discs that can be installed on either side of the vehicle, directional discs are side‑specific – left and right discs are distinctly different and must be installed on the correct side to achieve the intended cooling performance.

The Engineering Behind the Design

• The curved vanes are cast into the internal structure of the disc during the manufacturing process.

• The orientation of the vanes is carefully calculated to maximise airflow volume and velocity without creating turbulence.

• This design reduces the operating temperature of the disc during extended braking events, which in turn reduces the risk of brake fade.

• Lower operating temperatures also contribute to extended brake pad life and reduced disc wear, as thermal stress is a primary factor in component degradation.

• The directional design provides measurable performance benefits over conventional discs, particularly in front‑axle applications where heat loads are greatest.

Precision Manufacturing at Micrometer Level

• The product is manufactured with dimensional tolerances measured in micrometres – the level of precision required for optimal brake performance.

• Run‑out – the lateral wobble of the disc as it rotates – is held to exceptionally tight limits. Excessive run‑out causes pedal pulsation and uneven pad wear.

• Thickness variation across the friction surface is similarly controlled. Variations lead to inconsistent pedal feel and reduced braking efficiency.

• Surface finish is carefully specified to promote proper pad bedding and consistent friction characteristics.

• This level of precision is particularly important for BMW vehicles, which are engineered with tight tolerances throughout the chassis and braking systems.

Integrated Bearing Kit – A Complete Replacement Solution

• The product is available with an integrated bearing kit – the wheel bearing and hub assembly pre‑mounted to the brake disc.

• This configuration significantly simplifies the replacement process, particularly for front‑axle applications where the bearing is often integrated with the disc assembly.

• For workshops, this reduces installation time and eliminates the need for separate bearing pressing or fitting procedures.

• For BMW owners, it ensures that the bearing and disc are perfectly matched, with correct preload and run‑out already established.

• Replacing the bearing together with the disc is recommended practice on many BMW models, as bearing wear and disc wear often coincide.

• The bearing kit option makes this a single‑step replacement – saving time, labour, and the cost of a separate bearing purchase.

ECE R90 Certification – Safety as Standard

• ECE R90 certification confirms that this disc meets European safety requirements for replacement brake components.

• The disc has been tested to ensure it delivers stopping performance equivalent to the original equipment fitted to the vehicle.

• Fade resistance, structural integrity, and dimensional accuracy are all verified under the certification process.

• For BMW owners, this provides confidence that the disc is a safe, reliable replacement that does not compromise the vehicle's braking performance.

• For workshops and distributors, ECE R90 certification reduces liability and ensures compliance with regulations in markets that require it.

Performance Design Options

Drilled Configuration

• Strategically placed holes across the friction surface improve heat dissipation and provide additional cooling.

• The holes also assist in expelling water from the friction zone, improving wet‑weather braking response.

• For BMW owners who drive in varying weather conditions, this option offers enhanced safety and confidence.

Slotted Configuration

• Grooves machined into the disc surface continuously clean the brake pad face.

• This removes gas, dust, and debris that can accumulate and reduce friction efficiency.

• The slots also provide a sharper initial bite, giving the driver a more immediate and responsive pedal feel.

• This option is particularly suited to more dynamic driving styles.

Drilled and Slotted Combination

• For drivers who want maximum cooling, cleaning, and bite, the combined configuration delivers all three benefits.

• This is the choice for BMW owners who value both performance and visual appeal.

Ventilated (Standard)

• All variants include the directional ventilated internal vane structure as standard.

• The ventilation is not merely cosmetic – it is an integral part of the disc's thermal management system.

Surface Protection Options

Oiled

• Light anti‑rust oil film applied during production.

• Protects the disc during storage and transit.

• Easily cleaned before installation with brake cleaner or a suitable solvent.

Painted

• Durable paint applied to the hat and outer edge surfaces.

• Provides effective corrosion resistance in humid or salt‑exposed environments.

• Maintains a clean, professional appearance over the life of the disc.

Coated

• Advanced zinc or geometric coating offering superior long‑term protection.

• The coating is designed to wear gradually from the friction area during normal braking.

• The rest of the disc remains permanently shielded against corrosion.

Who Is This Product For?

BMW Owners

• For drivers who value the precise, responsive braking character that BMW vehicles are known for.

• For those who want to maintain or even enhance their vehicle's braking performance during a disc replacement.

• For owners who appreciate engineering detail – the directional design and precision machining reflect a commitment to quality that aligns with BMW ownership.

Workshops Specialising in BMW

• For service centres that work on BMW vehicles regularly, having a directional disc with bearing kit option simplifies inventory management.

• The side‑specific design reduces installation errors when clear instructions are followed.

• The bearing kit option speeds up front‑axle brake jobs, improving workshop throughput.

High‑Performance and Enthusiast Drivers

• For those who drive their BMW more dynamically – whether on winding roads or track days.

• The directional cooling, drilled/slotted options, and micrometer precision all contribute to consistent performance under demanding conditions.

The Relationship Between Disc and Bearing

• On many BMW front axles, the brake disc and wheel bearing are assembled as a unit.

• Replacing the disc without replacing a worn bearing can leave vibration or noise issues unresolved.

• Conversely, replacing the bearing without addressing the disc condition is equally incomplete.

• The bearing kit option resolves this by offering both components together, ensuring a comprehensive front‑axle service.

• This approach saves the customer the cost and inconvenience of a separate bearing replacement later.

Quality Assurance and Testing

• Each disc is inspected for dimensional accuracy to micrometer tolerances.

• Run‑out and thickness variation are verified on every production batch.

• Material composition is controlled to ensure consistent friction and wear characteristics.

• The directional vane structure is checked for casting integrity and correct orientation.

• Corrosion resistance of surface finishes is validated through standardised testing.

Fitment and Compatibility

• Specifically designed for the front axle of BMW vehicles.

• Side‑specific left and right discs – correct orientation is essential for directional cooling to function properly.

• Available with or without integrated bearing kit, depending on customer requirements.

• Direct replacement – no modifications required.

• Consult the product catalogue or contact Winhere with vehicle details for specific fitment confirmation.

• 100% critical dimensions, runout and DTV inspection

• Material physical and chemical inspection

• Test shear strength, compressibility, density, flatness and parallelism

• Test performance and noise/NVH
