Brake Pad for AUDI Front ECE R90

Tailored specifically for all Audi models, these front ECE R90 brake pads precisely fit the front braking systems of mainstream Audi vehicles including the A4L, A6L, Q5L, A3, and Q3. They are deeply matched to the power output characteristics of Audi gasoline and hybrid models, strictly adhering to Audi's original factory brake parameter standards. They are the preferred choice for aftermarket replacements at Audi dealerships and for factory upgrades by owners. Certified under ECE R90 EU safety standards and rigorously tested by Audi's manufacturing plant, these pads maintain a stable friction coefficient between 0.40 and 0.45. They perfectly match the primary braking force requirements of Audi's front brake systems, delivering swift and linearly controllable response during braking while effectively reducing stopping distances.

Crafted from low-metal, high-end composite materials through multi-stage precision pressing, it features a proprietary noise-reducing surface coating and damping backing plate structure. This eliminates harsh squeals during braking, harmonizing with Audi's quiet cabin ambiance. A special high-temperature stable compound formula effectively suppresses thermal fade, ensuring consistent and stable braking force during high-speed cruising, consecutive cornering, or frequent braking in congested urban areas. The backplate's electrophoretic rustproof treatment resists moisture and corrosion, while uniform wear ensures excellent longevity. Suitable for diverse scenarios including business travel and family road trips, it can be directly installed without additional modifications.

Overview

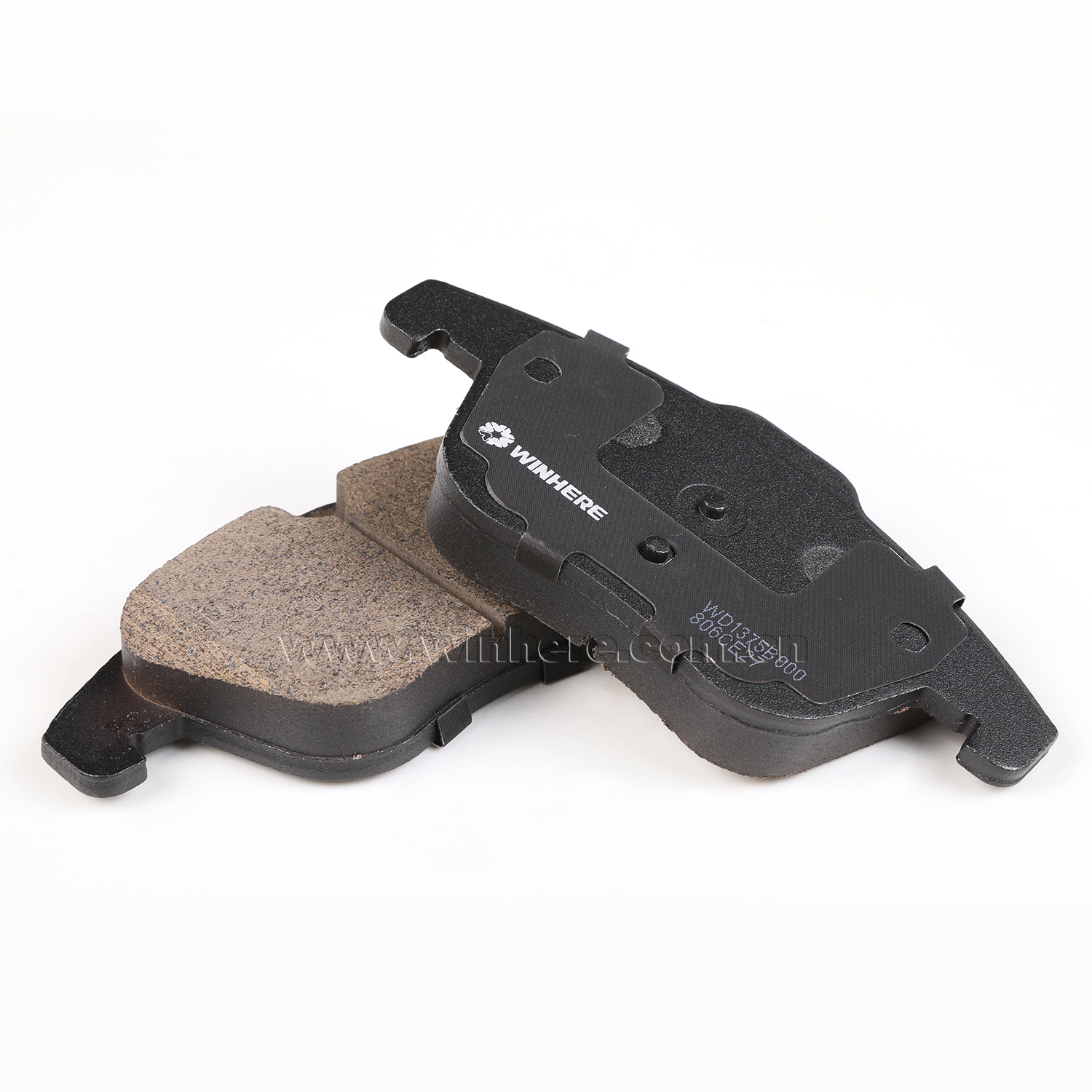

This product is a front brake pad set engineered specifically for Audi vehicles, carrying ECE R90 certification for compliance with European safety standards. The pad is available in five distinct friction material formulations – semi‑metallic, low‑steel, ceramic, ceramic copper‑free, and NAO (Non‑Asbestos Organic) – allowing customers to select the compound that best matches their driving style, vehicle usage, and performance expectations. Additional design features include integrated noise‑reduction technology, optional clip‑less configurations, and precision‑engineered metal backing plates. Whether the application is daily commuting, high‑performance driving, or environmental compliance, this product range offers a tailored solution for Audi front‑axle braking requirements.

Why Brake Pad Material Selection Matters

The brake pad is the component that converts kinetic energy into thermal energy through friction. The material formulation directly determines:

• Stopping distance and braking force

• Fade resistance under sustained or repeated braking

• Noise characteristics – squeal, groan, or silence

• Dust generation and wheel cleanliness

• Disc wear rates and overall system longevity

• Environmental impact of wear particles

Choosing the correct friction material for the vehicle's usage pattern is as important as choosing the correct disc. This product range offers five material options, each with distinct performance characteristics.

Friction Material Options – Technical Comparison

Semi‑Metallic Brake Pad

• Contains approximately 35% metal content – typically iron, copper, and steel fibres.

• Provides the highest friction coefficient among the options, delivering maximum stopping power.

• Excellent thermal conductivity – heat is transferred away from the pad surface, reducing fade.

• Durable and long‑lasting under heavy use.

• Best suited for: Heavy vehicles, frequent towing, aggressive driving, and high‑load applications.

• Considerations: Slightly higher noise potential and more disc wear compared to ceramic formulations.

Low‑Steel Brake Pad

• Contains 10‑30% steel fibres and other soft metals.

• Offers strong braking performance with a more refined feel than semi‑metallic.

• Good fade resistance for sustained braking events.

• Provides a firm, direct pedal feel that many Audi owners prefer.

• Best suited for: Enthusiast drivers, highway cruising, and mixed driving conditions.

• Considerations: Moderate dust generation and noise characteristics.

Ceramic Brake Pad

• Ceramic fibres, copper fibres (in some formulations), and fillers – metal content is minimal.

• Exceptionally low dust generation – dust is light‑coloured and less visible on wheels.

• Quiet operation – ceramic materials naturally dampen vibration and reduce squeal.

• Gentle on brake discs – reduced disc wear over the pad's service life.

• Smooth, linear pedal feel – progressive braking response.

• Best suited for: Daily commuting, luxury vehicle applications, and drivers who prioritise comfort and cleanliness.

• Considerations: Lower ultimate friction coefficient than metallic formulations – adequate for most driving but not track‑oriented.

Ceramic Copper‑Free Brake Pad

• Ceramic formulation with copper eliminated from the material composition.

• Retains the low dust, quiet operation, and disc‑friendly characteristics of standard ceramic.

• Environmentally compliant – addresses regulatory concerns about copper runoff in brake dust.

• Friction levels are maintained through alternative friction modifiers.

• Best suited for: Environmentally conscious drivers, regions with copper‑restriction regulations, and luxury vehicle applications.

• Considerations: Similar performance profile to standard ceramic with enhanced environmental compliance.

NAO (Non‑Asbestos Organic) Brake Pad

• Organic formulation using aramid fibres, glass fibres, and other non‑metallic materials.

• Very low dust generation.

• Quiet operation with minimal noise.

• Low disc wear – gentle on the braking system.

• Smooth, comfortable pedal feel.

• Best suited for: Light‑duty applications, city driving, and drivers who prioritise comfort.

• Considerations: Lower thermal capacity – not recommended for heavy braking or performance driving.

Noise Reduction Technology – Solving Brake Squeal

The Cause of Brake Noise

• Brake squeal is typically caused by high‑frequency vibration between the pad, caliper, and disc.

• The vibration can be amplified by the caliper and transmitted through the suspension into the cabin.

• Common contributing factors include pad material, disc surface condition, caliper condition, and installation correctness.

Noise Reduction Features

• Integrated shims – Multi‑layer damping shims are attached to the metal backing plate, absorbing vibration and reducing the transmission of squeal‑frequency noise.

• Pre‑applied lubricant – Lubricant is applied to the contact points between the pad and caliper, reducing metal‑on‑metal noise.

• Chamfered edges – The pad edges are chamfered to reduce the likelihood of edge‑to‑edge contact with the disc, a common source of high‑frequency noise.

• Slotted or scalloped pad surface – Where specified, the friction material is slotted to break up vibration patterns and reduce noise.

The "Non‑Squealing" Promise

• The product is engineered to deliver quiet braking across a wide range of temperatures and pressures.

• The combination of material formulation, shim design, and edge geometry works together to minimise noise.

• For Audi owners, this means the refined, quiet braking experience expected from a premium vehicle.

Without Clips – A Design Choice Explained

What "Without Clips" Means

• Some brake pad designs include metal clips that attach to the pad ears or caliper bracket to reduce movement and noise.

• "Without clips" indicates that this pad does not require or include these additional clip components.

Why Choose Without Clips

• Simpler installation – fewer components to handle during pad replacement.

• Reduced parts cost – clips are not included, lowering the overall product cost.

• Potential noise reduction – in some caliper designs, clips can become loose or corroded over time, creating their own noise. Eliminating them removes this potential failure point.

• Direct fitment – the pad is designed to fit the caliper correctly without the need for clips.

When Clips Are Still Recommended

• Some Audi caliper designs are engineered to work with clips. In these cases, retaining the clips is recommended.

• Winhere can supply the pad with or without clips, depending on customer preference and vehicle requirements.

• For customers who require clips, these are typically available as part of a separate hardware kit.

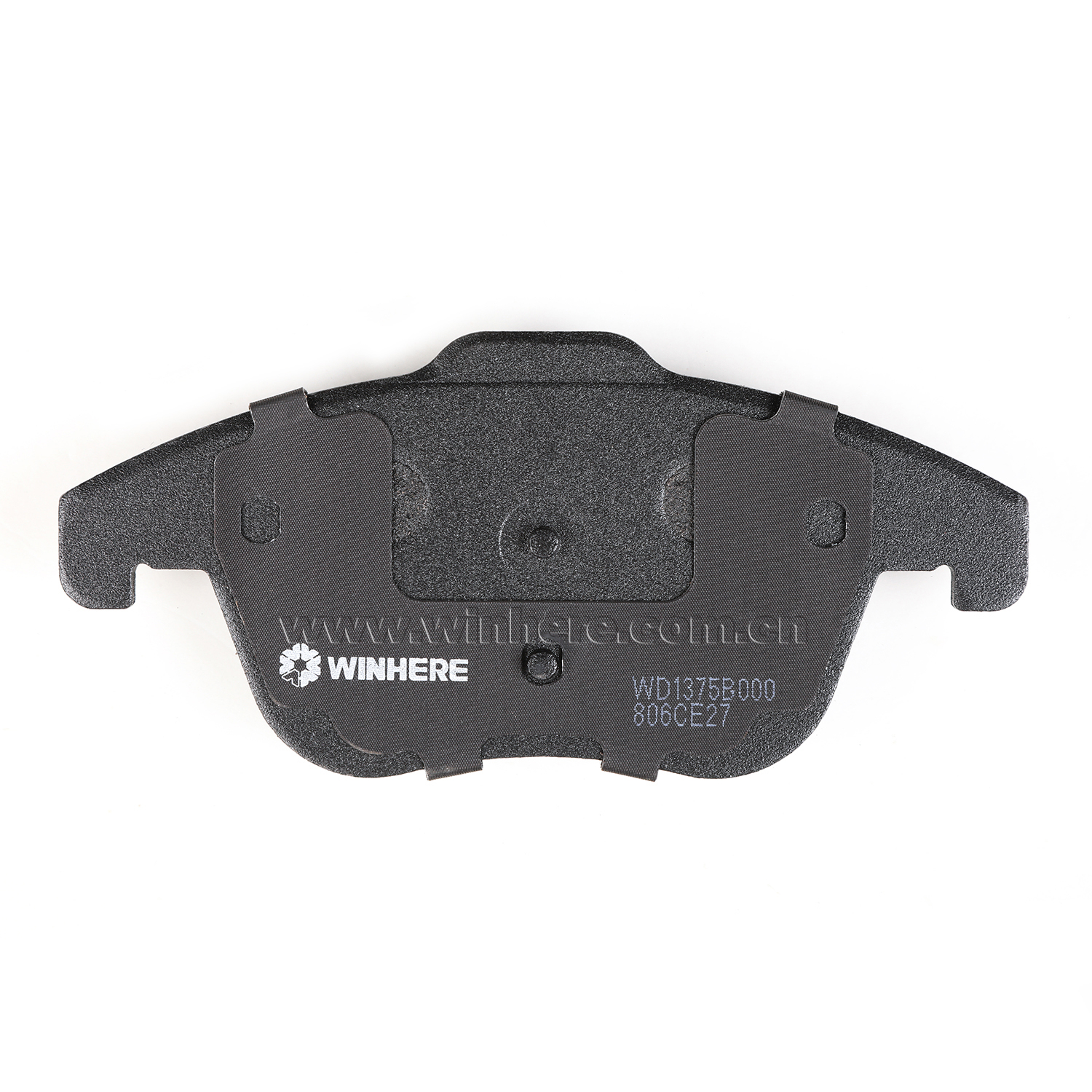

Metal Backing Plate – Structural Integrity and Heat Transfer

• The metal backing plate provides the structural foundation for the friction material.

• It transfers braking force from the caliper piston to the friction material, ensuring even pressure distribution.

• The plate also conducts heat away from the friction surface, assisting with thermal management.

• Precision‑manufactured to match the caliper piston dimensions and pad guide specifications.

Surface Treatment

• The backing plate is typically coated or painted to resist corrosion.

• This is particularly important in regions with high humidity, coastal salt air, or winter road salt exposure.

• The corrosion resistance ensures the pad can be removed cleanly during future brake services.

Application for Audi Vehicles

• Audi front brake calipers apply significant clamping force – the backing plate must be strong enough to withstand this force without deforming.

• The plate thickness, material grade, and heat treatment are all specified to meet Audi's original equipment standards.

• This ensures that the pad transfers braking force evenly, preventing uneven pad wear and maintaining consistent pedal feel.

ECE R90 Certification – Safety and Legal Compliance for Brake Pads

• ECE R90 is the European regulatory standard for replacement brake pads.

• The certification requires that the pad's friction performance falls within a specified range of the original equipment friction level.

• Fade resistance, cold friction, and hot friction are all measured and verified under the certification process.

• Batch‑to‑batch consistency is ensured – every pad performs as tested.

What This Means for Audi Owners

• Confidence that the pad delivers stopping performance equivalent to the original equipment.

• Legal compliance for vehicles in markets that require ECE R90 certification.

• Verified safety – the pad has been tested to ensure it performs reliably in both normal and emergency braking situations.

Who Is This Product For?

Audi Owners

• For drivers who want a quality brake pad replacement that meets the vehicle's original performance standards.

• For those who prefer a specific friction material – ceramic for low dust, semi‑metallic for maximum stopping power, or low‑steel for a sporty feel.

• For owners who value quiet braking and want a pad engineered to reduce squeal.

Workshops Specialising in Audi

• For service centres that work on Audi vehicles regularly and need a reliable, ECE‑certified pad option.

• The multiple material options allow workshops to recommend the right pad for each customer's driving style.

• The noise‑reduction features reduce customer complaints and comebacks.

Performance and Enthusiast Drivers

• For Audi owners who drive more dynamically – on winding roads, at higher speeds, or during occasional track use.

• The semi‑metallic or low‑steel options provide the higher friction and fade resistance needed for spirited driving.

• The ECE R90 certification provides confidence that even under demanding conditions, the pad meets safety standards.

Environmental Compliance Buyers

• For drivers and fleets in regions with copper‑restriction regulations.

• The ceramic copper‑free option provides the low‑dust, quiet performance of ceramic without copper content.

• This is particularly relevant for markets such as the US West Coast, parts of Europe, and other regions with environmental restrictions on brake materials.

Installation Considerations – Pad Bedding and Break‑In

Why Bedding Matters

• New brake pads require a bedding‑in process to transfer a layer of pad material evenly onto the disc surface.

• Proper bedding ensures consistent friction, reduced noise, and longer pad and disc life.

• Incorrect bedding can lead to glazed pads, reduced braking performance, and noise.

Recommended Bedding Procedure

• Perform a series of moderate stops from 40‑50 mph to a slow roll, allowing the brakes to cool between stops.

• Avoid hard or full‑throttle stops during the first 100 brake applications.

• After initial bedding, allow the brakes to cool completely before heavy use.

• The specific bedding procedure may vary by material type – ceramic pads generally require a gentler bedding process than semi‑metallic.

Installation Tips

• Always replace brake pads in axle sets – both front or both rear – to maintain balanced braking.

• Inspect the disc condition when replacing pads – if the disc is worn, scored, or below minimum thickness, replace it at the same time.

• Clean the caliper guide pins and lubricate them to ensure the caliper slides freely.

Quality Assurance and Manufacturing Standards

• Manufactured to Audi OE specifications for front‑axle fitment.

• ECE R90 certified – friction performance verified.

• Friction material composition controlled for consistency.

• Backing plate dimensional accuracy verified – correct fitment in caliper.

• Noise‑reduction shims inspected for attachment quality and material specification.

• Surface finish controlled for proper pad bedding and consistent friction.

• Batch‑to‑batch testing ensures every set performs as expected.

Fitment and Compatibility

• Specifically designed for the front axle of Audi vehicles.

• Available in multiple friction material formulations – semi‑metallic, low‑steel, ceramic, ceramic copper‑free, and NAO.

• Available with or without clips, depending on customer preference.

• Direct replacement – no modifications required.

• Consult the product catalogue or contact Winhere with vehicle details (model, year, engine variant) for specific fitment confirmation.

• 100% critical dimensions, runout and DTV inspection

• Material physical and chemical inspection

• Test shear strength, compressibility, density, flatness and parallelism

• Test performance and noise/NVH
