Braking relies entirely on physics. When you press the pedal, your vehicle converts kinetic energy into intense friction and heat. Managing this thermal load dictates your stopping power, consistency, and overall safety on the road. Vehicle owners and fleet managers often face confusion when selecting replacement rotors or planning performance upgrades. Choosing the wrong rotor type risks brake fade, accelerated component wear, or incompatible hardware that leaves a vehicle stuck on the lift. We will evaluate the mechanical differences between rotor designs. This guide breaks down thermal dynamics, axle-specific requirements, and the structural limits of each setup. You will learn exactly how to make a technically sound purchasing decision based on vehicle weight, driving conditions, and axle placement. We strip away the marketing jargon to focus on what actually stops a heavy piece of machinery safely.
Thermal Capacity: Vented brake discs feature internal vanes that actively dissipate heat, making them essential for heavy vehicles, towing, and high-speed applications to prevent brake fade.
Application Specificity: Solid rotors are typically restricted to the rear axles of standard passenger vehicles where braking loads and heat generation are significantly lower.
Upgrade Limitations: Swapping from solid to vented brake discs is rarely a direct bolt-on replacement; it almost always requires upgrading the brake calipers and brackets to accommodate the increased rotor thickness.
Cost vs. Utility: Solid discs offer a lower replacement cost and sufficient durability for daily commuting, whereas vented rotors justify their higher price point through sustained performance under high thermal stress.
Design Clarification: "Vented" refers to the internal cooling structure of the rotor, which should not be confused with surface modifications like cross-drilling or slotting.
Solid rotors consist of a single, uniform piece of cast iron or composite material. Manufacturers cast these discs as solid metal plates without any internal voids or cooling channels. This simplicity makes them mechanically robust under normal driving conditions. However, the lack of internal structure limits their heat dissipation capabilities. Thermal energy can only escape through surface-level radiation. Once the friction surfaces absorb heat, the solid metal retains it until ambient airflow slowly cools the exterior.
Automakers primarily install solid rotors on lightweight economy cars or the rear axles of standard passenger vehicles. Rear brakes handle a fraction of the stopping force compared to the front. This lower workload generates significantly less heat. A solid cast iron disc easily absorbs and radiates this minor thermal load without compromising braking efficiency. Their straightforward design also minimizes unsprung weight on lighter vehicles. Mechanics see these daily on the rear of compact sedans, where they easily last tens of thousands of miles without warping, provided the caliper slide pins remain lubricated and functional.

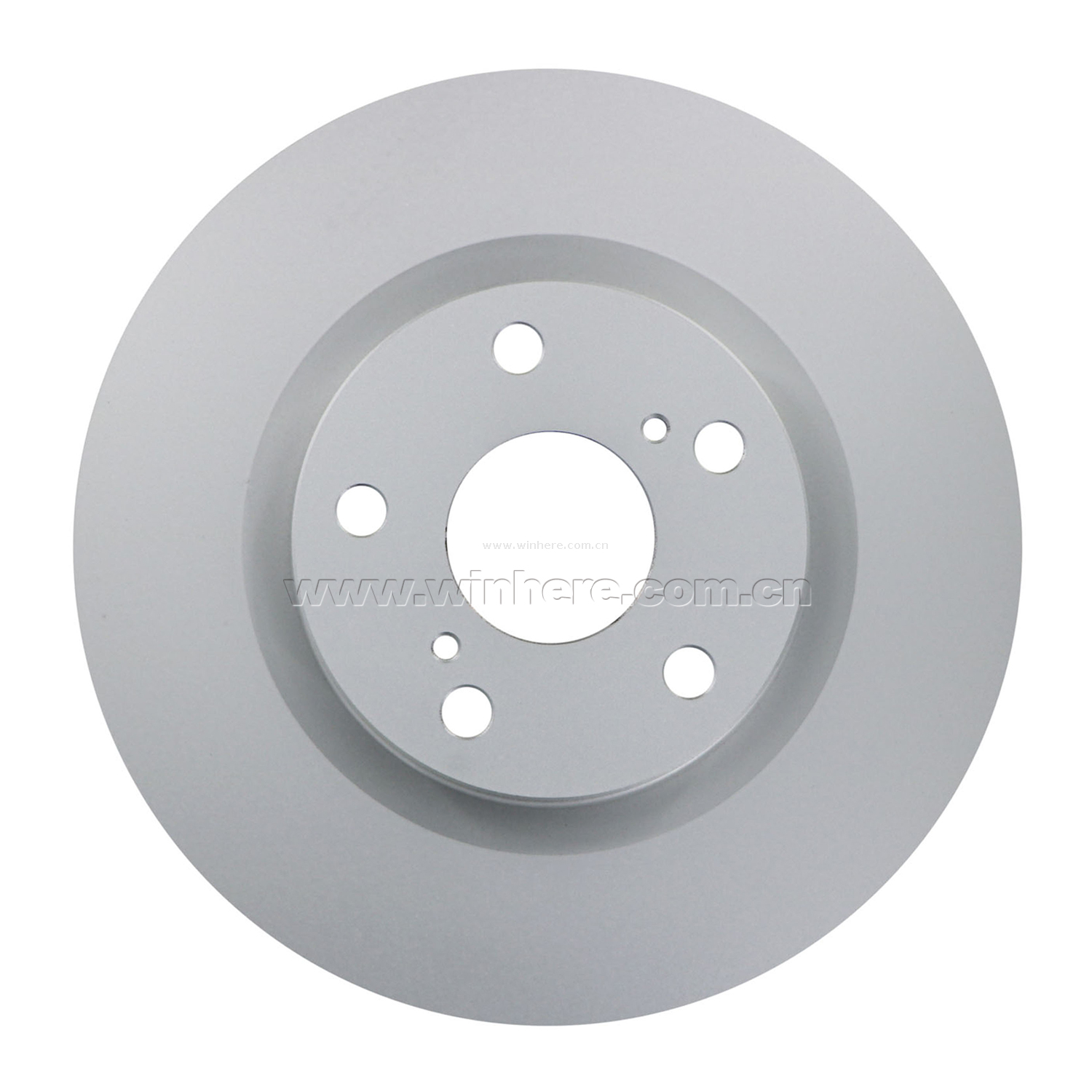

When comparing vented vs solid brake discs, the primary distinction lies in internal architecture. Vented rotors feature two distinct friction surfaces separated by internal structural vanes. These vanes create hollow channels inside the disc. As the wheel turns, the rotor acts as a centrifugal pump. Rotational movement draws cool air from the center of the wheel hub and pushes it outward through the internal vanes. This continuous airflow actively extracts heat from the core of the rotor.
Engineers utilize several vane variations to optimize cooling efficiency based on the vehicle platform. The specific design dictates how air moves through the casting.
Straight Vanes: These radiate outward from the center. They offer reliable cooling regardless of rotational direction, making them standard on most production vehicles.
Curved Vanes: These act as aggressive air pumps. They move larger volumes of air but require strict directional installation on the left or right side of the vehicle to function properly.
Pillar Vanes: These use staggered internal posts instead of continuous walls. They create turbulent airflow that maximizes thermal transfer and adds structural stability to the friction faces.
These internal structures drastically increase the surface area available for heat dissipation, allowing the rotor to shed thermal energy much faster than a solid plate.
Drivers frequently confuse internal venting with surface modifications. You must understand the distinction to select the correct components. "Vented" strictly refers to the internal cooling channels between the two friction faces. "Drilled" or "slotted" refers to patterns machined into the exterior friction surfaces. A rotor can be vented and drilled simultaneously, but the terms are never interchangeable.
Internal vanes manage core temperatures and prevent the cast iron from overheating. Surface slots and drilled holes serve a completely different purpose. They manage pad outgassing, clear brake dust, and channel water away from the friction surface. Slotted rotors wipe the brake pad clean during rotation. Drilled holes give heated gases a place to escape. Neither modification replaces the massive thermal management provided by an internal vented structure.
Heat dissipation separates standard braking from high-performance stopping power. Vented designs actively pump ambient air through their core, shedding heat rapidly. This prevents the transfer of extreme temperatures to the brake caliper and fluid. If brake fluid boils, gas bubbles form in the hydraulic lines. This results in a soft pedal and complete loss of stopping power. Vented rotors keep system temperatures well below this threshold during prolonged braking, such as descending steep mountain grades.
Solid discs struggle under repeated heavy braking. Without internal airflow, the cast iron quickly reaches its thermal capacity. The brake pads overheat and begin to glaze, leaving a hard, slick surface that cannot generate friction. This rapid loss of friction coefficient is known as brake fade. Once a solid rotor heat-soaks, the driver must apply significantly more pedal pressure to achieve the same deceleration. Eventually, this leads to zero braking response until the system cools down.
Extreme heat cycling violently expands and contracts brake components. Solid rotors lack internal reinforcement. When subjected to intense heat, the single metal plate expands unevenly. This uneven expansion often leads to thermal distortion, commonly referred to as warping. The rotor develops disc thickness variation (DTV). When the brake pads clamp down on a distorted solid rotor, the driver feels severe vibrations through the steering wheel and brake pedal.
The internal vanes of a vented rotor do more than flow air. They act as structural ribs connecting the two friction faces. This internal bracing adds immense rigidity to the casting. The dual-plate design resists twisting and bending under extreme thermal loads. By maintaining a uniform temperature across the friction surfaces and resisting physical distortion, vented rotors deliver smooth, consistent braking even after punishing heat cycles.
Environmental factors heavily influence initial braking response. In heavy rain, a thin film of water coats the rotor surface. The brake pad must physically wipe this water away before generating friction. Vented rotors handle wet conditions better due to their thermal dynamics. The internal airflow keeps the rotor at an optimal operating temperature, helping to evaporate surface moisture faster than a solid disc. This improves the initial bite when you apply the brakes in a downpour.
Heated brake pads release gases when pushed to their thermal limits. This outgassing creates a boundary layer between the pad and the rotor, physically pushing the pad away from the friction surface. Vented rotors manage this phenomenon effectively. The cooler operating temperatures reduce the volume of gas released by the pads. If the vented rotor also features surface slots, it rapidly evacuates any remaining gas, ensuring the pad maintains direct contact with the iron.
Rotational mass directly impacts vehicle handling and suspension response. Solid rotors are thinner and generally lighter than their vented counterparts. This lower unsprung mass allows the suspension to track road imperfections more accurately. Lighter rotors also require less energy to accelerate and decelerate, slightly improving fuel efficiency on lightweight economy vehicles.
Vented rotors are physically thicker to accommodate the internal cooling channels. However, the hollow internal structure offsets much of the weight penalty. While they weigh more than a solid disc of the same diameter, the thermal benefits far outweigh the minor increase in unsprung mass. For modern, heavier vehicles, the suspension systems easily handle this slight weight increase without degrading ride quality or handling dynamics.
Performance Metric | Solid Brake Discs | Vented Brake Discs |
|---|---|---|
Internal Structure | Single cast metal plate | Dual plates with internal cooling vanes |
Heat Dissipation Rate | Low (Relies on surface radiation) | High (Active centrifugal airflow) |
Thermal Distortion Risk | High under extreme stress | Low (Structurally reinforced by vanes) |
Typical Axle Placement | Rear axles, lightweight commuter cars | Front axles, heavy vehicles, sports cars |
Unsprung Weight Profile | Lighter, improves suspension tracking | Slightly heavier, offset by hollow core |
Brake Fade Resistance | Poor during sustained heavy braking | Excellent during repeated deceleration |
Vehicle dynamics dictate braking hardware distribution. When you apply the brakes, the vehicle's weight violently shifts forward. This forward weight transfer forces the front tires into the pavement, increasing their traction. Consequently, the front axle handles up to 80% of the total braking force. The front brakes generate massive amounts of kinetic energy and heat.
Automakers follow a strict industry standard based on these physics. They equip front axles with vented rotors to manage the extreme thermal loads safely. The rear axle, handling only 20% to 30% of the stopping force, generates minimal heat. Installing solid discs on the rear axle saves weight and reduces manufacturing complexity without sacrificing safety. This staggered setup provides optimal balance for standard passenger vehicles.
Success criteria for daily drivers revolve around longevity, low noise, and reliability. Commuters rarely subject their vehicles to sustained, high-speed braking. Stop-and-go traffic generates moderate heat that easily dissipates between traffic lights. For these low-stress conditions, solid rear rotors perform flawlessly. They provide smooth engagement and sufficient stopping power for sudden highway decelerations.
Lightweight sedans and hatchbacks do not generate enough kinetic energy to overwhelm a solid rear disc. The cast iron easily absorbs the thermal load. Drivers benefit from a quieter braking experience, as solid rotors lack the internal vanes that can sometimes generate faint wind noise at high speeds. Sticking to the OEM solid rear setup ensures maximum pad life and predictable daily performance.
Adding payload fundamentally changes the physics of braking. Kinetic energy increases exponentially with weight. A truck towing a heavy trailer generates massive thermal loads during deceleration. Descending a grade with a full payload forces the brakes to absorb continuous, punishing heat. A standard solid rotor will heat-soak, glaze the pads, and induce brake fade within minutes under these conditions.
Heavy-duty trucks and fleet vehicles require maximum thermal capacity. Manufacturers equip these vehicles with vented Brake Discs on all four corners. The rear brakes on a loaded truck handle a much higher percentage of the stopping force compared to an empty passenger car. Vented rear rotors ensure the vehicle maintains safe stopping distances and resists fluid boiling, even when operating at maximum Gross Combined Weight Rating.
Motorsport environments subject brake systems to extreme thermal cycling. A track car accelerates to high speeds and immediately decelerates for tight corners, repeatedly pushing the cast iron to glowing temperatures. Solid rotors warp, crack, or fail catastrophically under these extreme loads. High-performance driving mandates active thermal management.
Track vehicles rely entirely on advanced vented rotors. These discs often feature directional curved vanes to maximize airflow. Teams pair these rotors with dedicated cooling ducts that force high-velocity air directly into the center hub. The combination of directional venting, surface slotting, and aggressive air ducting allows the brake system to survive the brutal heat generation of competitive racing.
The choice between vented and solid brake discs relies strictly on physics and vehicle application, not subjective preference. Vented rotors are mandatory for high-heat environments, managing massive kinetic energy through active airflow. Solid rotors remain highly efficient and reliable for low-stress applications where heat generation is minimal. For most drivers, sticking to OEM specifications guarantees optimal balance and safety. If you experience chronic brake fade due to heavy towing or track use, you must look beyond piecemeal rotor swaps. True thermal management requires upgrading the entire brake system ecosystem.
Consult your vehicle factory service manual to confirm exact OEM rotor dimensions and axle-specific requirements.
Inspect your current caliper throat clearance before purchasing any aftermarket thicker rotors.
Evaluate your typical driving loads to determine if a vented rear hardware upgrade is necessary for towing.
Check the internal cooling vanes of your current vented rotors for rust or debris blockage during your next tire rotation.
A: No, it is rarely a direct bolt-on swap. Vented discs are significantly thicker due to their internal cooling vanes. Upgrading requires replacing your brake calipers and mounting brackets with wider versions designed to clear the increased thickness of the vented rotor.
A: They are vastly superior at heat dissipation and resisting brake fade. However, they are not strictly necessary for lightweight vehicles or rear axles where heat generation is minimal. Solid discs perform perfectly well under low-stress conditions.
A: During deceleration, forward weight transfer forces the front wheels into the ground. The front axle handles up to 80% of the braking force, generating extreme heat that requires vented rotors. The rear axle handles much less load, allowing for solid discs.
A: No. Wear rates are dictated by the brake pad compound, your driving style, and the rotor metallurgy. The presence of internal venting manages heat but does not inherently accelerate the physical wear of the friction surfaces.
A: Look at the top outer edge of the rotor through your wheel spokes. A solid disc appears as a single, solid metal edge. A vented disc looks like a metal sandwich, featuring two distinct plates separated by visible gaps or vanes.
A: They do not require special pads. However, their superior cooling capacity allows drivers to safely use higher-friction, higher-temperature pad compounds, like semi-metallic track pads, without risking immediate rotor warpage or fluid boiling.
