Brake components are one of the most important parts of any vehicle and should be inspected regularly. Worn brake components can lead to reduced braking capacity and increased braking distances, directly contributing to a greater risk of an accident. If you don't want to replace these parts frequently, you should have your brake components maintained and cleaned at a regular interval. Here's what we know about lubricating your car's brake parts.
What are the parts of the brake system?
ABS Control Module
Brake Booster
Disc Brakes
Drum Brakes
Emergency Brake
Master Cylinder
Brake Pedal
Wheel Speed Sensor
What are the parts of the brake system?
Use Brake fluid to lubricate brake parts
How often should you change the brake fluid?
What should you pay attention to when changing the brake fluid?
1. ABS Control Module
Located on vehicles with ABS brakes, this module performs diagnostic checks on the ABS braking system and determines when the correct pressure is sent to each wheel to prevent wheel lock-up.
2. Brake Booster
Reduces the pressure required to apply brakes to allow any driver to operate the brakes. Uses engine vacuum and pressure to increase the force applied to the master cylinder by the brake pedal.

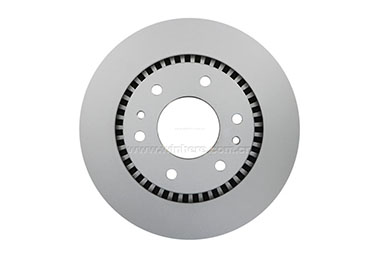

3. Disc Brakes
Disc brakes are usually located on the front wheels and have pads that press against the disc (rotor) when the brake pedal is depressed to stop the vehicle. Said pads are attached to the caliper assembly of the frame.
4. Drum Brakes
Drum brakes are located at the rear of the vehicle and have wheel cylinders, brake shoes and drums. When the brake pedal is depressed, the brake shoes are pressed into the drum by the wheel cylinders, thus stopping the vehicle.
5. Emergency Brake
Operates independently of the main braking system to prevent the vehicle from skidding. Also known as the parking brake, hand brake and electronic brake, the emergency brake is primarily used to hold the vehicle in place while stopping.
6. Master Cylinder
Converts non-hydraulic pressure into hydraulic pressure, which the wheel cylinder uses to press the brake pads against the rotor, thus stopping the vehicle.
7. Brake Pedal
The driver depresses the brake pedal to activate the brakes. When the pedal is depressed, the piston in the master cylinder moves.
8. Wheel Speed Sensor
The speed sensor is a part of the ABS braking system that monitors the speed of each tire and sends the information to the ABS control module.
1. Prepare the vehicle and equipment
a. Drive the vehicle to the designated position on the two-post lift and unlock it by turning the hood latch.
b. Open the hood and lay out the fender cloth.
c. Check if the brake fluid in the change unit is sufficient; if there is not enough brake fluid, add it promptly.
2. Connect the oil change unit
Connect the unit to the 220V power supply, connect the oil delivery line to the brake fluid tank and set the pressure to 1.0-2.0BAR.
3. Change the brake fluid
Drain the brake fluid in the following order: right rear wheel, left rear wheel, right front wheel and left front wheel.
Note: If any brake fluid is spilled on rubber parts (such as tires) during the oil change, clean them with a suitable cleaner to prevent corrosion.
4. Finishing work
a. After replacement, remove the oil changer.
b. Press the brake pedal 3-5 times in the cab until the pedal feels the same as before.
c. Set the oil level to the center line and cover the oil filler cap; retract the fender cloth and close the hood.
When braking normally, not only will the brake pads wear out, but the brake fluid will also be consumed over time. To ensure brake performance, it is generally required to change the brake fluid every 40,000 km or every three years; in wet environments, it is best to change the brake fluid every two years.
Regardless of the brand of the car, after the brake fluid has been used for a long time, the brake bowl and piston in the brake master cylinder will wear out, causing the brake fluid to become cloudy and thus affecting the brake effect. In addition, brake fluid is hygroscopic, which means that it will absorb moisture from the air. The boiling point of brake fluid will be lowered when there is more water in it, which will easily produce air resistance when braking for a long time, resulting in brake failure. Don't mix different types and brands of brake fluid, and don't buy counterfeit products to save money. If you use unqualified brake fluid, it will corrode the bowl of the brake pump and the boiling point will be low, which may cause the brakes to malfunction. Of course, the most crucial thing is to find a reliable place to change the brake fluid.
